lampda::logic::alerts::AlertBase Struct Reference

Base class for all alerts. Must be overloaded to define an alert. More...

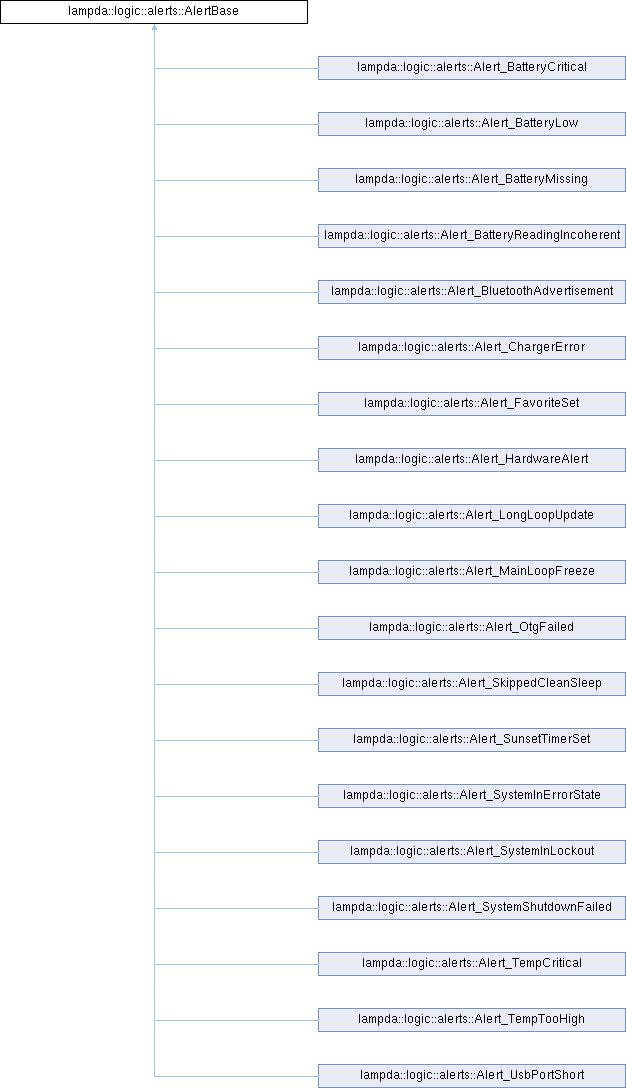

Inheritance diagram for lampda::logic::alerts::AlertBase:

Public Member Functions
virtual	~AlertBase ()=default
	virtual destructor for a pure virtual class
virtual uint32_t	alert_shutdown_timeout () const
	Return the timeout after which an alert will make the system auto-shutdown.
virtual void	execute () const
	function executed when this alert is raised
virtual bool	should_be_raised () const
	return true if this alert type should be raised
virtual bool	should_be_cleared () const
	return true if this alert type should be cleared
virtual bool	show () const
	display this alert on the indicator
virtual Type	get_type () const =0
	return the Defined type of this alert
virtual bool	should_shutdown_system (const uint32_t time) final
	Return true if the system should shutdown from this alert.
virtual bool	handle_raised_state (const uint32_t time)
	Handler for the raised state of the alert. If the alert is not raised, raise the alert.
void	update_raise_time (const uint32_t time)
	Update the raised time of this alert. An alert continuously firing as to be updated.
virtual bool	handle_lowered_state (const uint32_t time)
	Handler for the lowered state of the alert. If the alert is raised, lower the alert.
virtual bool	should_prevent_lamp_output () const
	override to prevent lamp output power if this alert if raised. Default to False
virtual bool	should_prevent_battery_charge () const
	override to prevent battery charge if this alert if raised. Default to False
virtual bool	should_prevent_usb_port_use () const
	override to prevent USB port usage if this alert if raised. Default to False

Public Attributes
bool	_isRaisedHandled = false
	Alert raise signal has been handled.
bool	_isLoweredHandled = false
	Alert lower signal has been handled.
uint32_t	raisedTime = 0
	Store the latest time at which this alert raise() was called.
uint32_t	loweredTime = 0
	Store the latest time at which this alert lower() was called.

Detailed Description

Base class for all alerts. Must be overloaded to define an alert.

Member Function Documentation

alert_shutdown_timeout()

virtual uint32_t lampda::logic::alerts::AlertBase::alert_shutdown_timeout ( ) const

inlinevirtual

Return the timeout after which an alert will make the system auto-shutdown.

Reimplemented in lampda::logic::alerts::Alert_BatteryCritical, and lampda::logic::alerts::Alert_TempCritical.

execute()

virtual void lampda::logic::alerts::AlertBase::execute ( ) const

inlinevirtual

function executed when this alert is raised

Reimplemented in lampda::logic::alerts::Alert_BatteryLow, and lampda::logic::alerts::Alert_TempTooHigh.

get_type()

virtual Type lampda::logic::alerts::AlertBase::get_type ( ) const

pure virtual

return the Defined type of this alert

Implemented in lampda::logic::alerts::Alert_MainLoopFreeze, lampda::logic::alerts::Alert_BatteryReadingIncoherent, lampda::logic::alerts::Alert_BatteryCritical, lampda::logic::alerts::Alert_BatteryLow, lampda::logic::alerts::Alert_BatteryMissing, lampda::logic::alerts::Alert_LongLoopUpdate, lampda::logic::alerts::Alert_TempTooHigh, lampda::logic::alerts::Alert_TempCritical, lampda::logic::alerts::Alert_BluetoothAdvertisement, lampda::logic::alerts::Alert_HardwareAlert, lampda::logic::alerts::Alert_ChargerError, lampda::logic::alerts::Alert_FavoriteSet, lampda::logic::alerts::Alert_OtgFailed, lampda::logic::alerts::Alert_SystemShutdownFailed, lampda::logic::alerts::Alert_SystemInErrorState, lampda::logic::alerts::Alert_SystemInLockout, lampda::logic::alerts::Alert_SunsetTimerSet, lampda::logic::alerts::Alert_SkippedCleanSleep, and lampda::logic::alerts::Alert_UsbPortShort.

handle_lowered_state()

virtual bool lampda::logic::alerts::AlertBase::handle_lowered_state ( const uint32_t  time )

inlinevirtual

Handler for the lowered state of the alert. If the alert is raised, lower the alert.

Returns

True if the alert was lowered by this function call

handle_raised_state()

virtual bool lampda::logic::alerts::AlertBase::handle_raised_state ( const uint32_t  time )

inlinevirtual

Handler for the raised state of the alert. If the alert is not raised, raise the alert.

Returns

True if the alert was raised by this function call

should_be_cleared()

virtual bool lampda::logic::alerts::AlertBase::should_be_cleared ( ) const

inlinevirtual

return true if this alert type should be cleared

Reimplemented in lampda::logic::alerts::Alert_BatteryReadingIncoherent, lampda::logic::alerts::Alert_BatteryCritical, lampda::logic::alerts::Alert_BatteryLow, lampda::logic::alerts::Alert_TempTooHigh, lampda::logic::alerts::Alert_BluetoothAdvertisement, lampda::logic::alerts::Alert_FavoriteSet, lampda::logic::alerts::Alert_SystemShutdownFailed, lampda::logic::alerts::Alert_SkippedCleanSleep, and lampda::logic::alerts::Alert_UsbPortShort.

should_be_raised()

virtual bool lampda::logic::alerts::AlertBase::should_be_raised ( ) const

inlinevirtual

return true if this alert type should be raised

Reimplemented in lampda::logic::alerts::Alert_BatteryCritical, lampda::logic::alerts::Alert_BatteryLow, lampda::logic::alerts::Alert_TempTooHigh, and lampda::logic::alerts::Alert_TempCritical.

should_prevent_battery_charge()

virtual bool lampda::logic::alerts::AlertBase::should_prevent_battery_charge ( ) const

inlinevirtual

override to prevent battery charge if this alert if raised. Default to False

Reimplemented in lampda::logic::alerts::Alert_BatteryReadingIncoherent, lampda::logic::alerts::Alert_BatteryMissing, lampda::logic::alerts::Alert_TempCritical, lampda::logic::alerts::Alert_HardwareAlert, lampda::logic::alerts::Alert_SystemShutdownFailed, lampda::logic::alerts::Alert_SystemInErrorState, and lampda::logic::alerts::Alert_UsbPortShort.

should_prevent_lamp_output()

virtual bool lampda::logic::alerts::AlertBase::should_prevent_lamp_output ( ) const

inlinevirtual

override to prevent lamp output power if this alert if raised. Default to False

Reimplemented in lampda::logic::alerts::Alert_BatteryReadingIncoherent, lampda::logic::alerts::Alert_BatteryMissing, lampda::logic::alerts::Alert_TempCritical, lampda::logic::alerts::Alert_HardwareAlert, lampda::logic::alerts::Alert_OtgFailed, lampda::logic::alerts::Alert_SystemShutdownFailed, and lampda::logic::alerts::Alert_SystemInErrorState.

should_prevent_usb_port_use()

virtual bool lampda::logic::alerts::AlertBase::should_prevent_usb_port_use ( ) const

inlinevirtual

override to prevent USB port usage if this alert if raised. Default to False

Reimplemented in lampda::logic::alerts::Alert_BatteryReadingIncoherent, lampda::logic::alerts::Alert_BatteryMissing, lampda::logic::alerts::Alert_TempCritical, lampda::logic::alerts::Alert_HardwareAlert, lampda::logic::alerts::Alert_SystemShutdownFailed, lampda::logic::alerts::Alert_SystemInErrorState, and lampda::logic::alerts::Alert_UsbPortShort.

show()

virtual bool lampda::logic::alerts::AlertBase::show ( ) const

inlinevirtual

display this alert on the indicator

Reimplemented in lampda::logic::alerts::Alert_BatteryReadingIncoherent, lampda::logic::alerts::Alert_BatteryCritical, lampda::logic::alerts::Alert_BatteryLow, lampda::logic::alerts::Alert_BatteryMissing, lampda::logic::alerts::Alert_LongLoopUpdate, lampda::logic::alerts::Alert_TempTooHigh, lampda::logic::alerts::Alert_TempCritical, lampda::logic::alerts::Alert_BluetoothAdvertisement, lampda::logic::alerts::Alert_HardwareAlert, lampda::logic::alerts::Alert_ChargerError, lampda::logic::alerts::Alert_FavoriteSet, lampda::logic::alerts::Alert_OtgFailed, lampda::logic::alerts::Alert_SystemShutdownFailed, lampda::logic::alerts::Alert_SystemInErrorState, lampda::logic::alerts::Alert_SystemInLockout, lampda::logic::alerts::Alert_SunsetTimerSet, lampda::logic::alerts::Alert_SkippedCleanSleep, and lampda::logic::alerts::Alert_UsbPortShort.

---

The documentation for this struct was generated from the following file:

• src/system/logic/alerts.cpp
